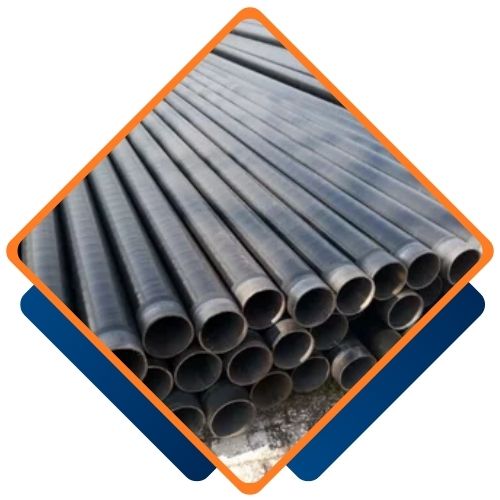

Home > Carbon Steel > Carbon Steel A106 Grade B Pipes
Strategically located in the industrial heart of Muscat, Laila Pipes and Tubes has built a strong reputation as a trusted partner for high-grade industrial materials. We specialize in supplying robust Carbon Steel A106 Grade B Pipes, a fundamental component for critical projects across the region. Our commitment extends beyond mere supply; we ensure every pipe meets stringent international standards, providing our clients with the reliability and performance necessary for demanding applications, backed by our deep industry knowledge and dependable service.
The composition of these pipes is carefully balanced, primarily iron with key additions of carbon, manganese, and silicon, alongside controlled levels of phosphorus and sulfur. This specific recipe gives A106 Grade B pipes their notable mechanical strength. They are designed to perform reliably under high pressure and elevated temperatures, offering an excellent combination of tensile and yield strength that makes them a go-to choice for enduring the stresses of industrial systems.
| Standards | ASTM, ASME and API, ANSI B 36.10 |
|---|---|
| Grades | ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic Etc |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter ASTM A106 Grade B Pipe |
| Additional Testing | Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR |
| ASME Standard | B36.10M Welded and Seamless Wrought Steel Pipe |
| ANSI Standard | B1.20.1 Pipe Threads, General Purpose |
| Standard | Grade | Process | Chemical Composition % | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C max | Mn* | P max | S max | Si min | Cr˟ max | Cu˟ max | Ni˟ max | Mo˟ max | V˟ max | |||
| ASTM A106-15 | B | SMLS | 0.30* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A106-15 | C | SMLS | 0.35* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A53-12 | B | SMLS | 0.30* | 1.20 | 0.05 | 0.045 | — | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A106 Grade A | ASTM A106 Grade B | ASTM A106 Grade C | ||
|---|---|---|---|---|
| ASTM A106 | Tenside strength, min, psi (MPa) | 48000(330) | 60000(415) | 70000(485) |
| Yield strength, min, psi (MPa) | 30000(205) | 35000(240) | 40000(275) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel A106 Grade B Pipes from Laila Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| NPS [DN Designator] | Over | Under | ||
|---|---|---|---|---|
| in. | mm | in. | mm | |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
| Standard | Permissible Variations in Outside Diameter | ||
|---|---|---|---|
| NPS” | OVER | UNDER | |
| ASTM A53-12 | 1-1/2 and less | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A53-12 | 2 and over | 1% of OD | 1% of OD |
| ASTM A106-15 | 1/8 to 1-1/2 | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A106-15 | Over 1-1/2 to 4 | 1/32” (0.031”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 4 to 8 | 1/16” (0.062”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 8 to 18 | 3/32” (0.093”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 18 to 26 | 1/8” (0.125”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 26 to 34 | 5/32” (0.156”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 34 to 48 | 3/16” (0.187”) | 1/32” (0.031”) |
Laila Pipes and Tubes is one of the largest Carbon Steel A106 Grade B Pipes suppliers in Dubai, OMAN, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel A106 Grade B Pipes to meet your specific requirements. Our team at Laila Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lailapipes.com.
These Carbon Steel A106 Grade B Pipes are extensively utilized in industries that demand robust, durable, and heat-resistant piping solutions. In the oil and gas industry, they are essential for transporting oil, gas, and water under high-pressure conditions. The power generation sector uses them in boilers, superheaters, and heat exchangers. Petrochemical and chemical plants depend on them for process piping and structural applications, while construction and industrial projects rely on them for pipelines that require exceptional strength and durability. With their superior mechanical properties and reliability, A106 Grade B Pipes are the go-to choice for crucial industrial operations.
