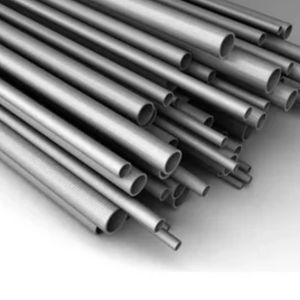

Titanium Pipes are top-notch piping solutions celebrated for their incredible strength, resistance to corrosion, and lightweight nature. They’re a go-to choice in industries that require reliability in tough conditions, like chemical processing, marine applications, aerospace, and power generation. These pipes hold up beautifully under high pressure, fluctuating temperatures, and exposure to harsh chemicals, making them perfect for transporting corrosive fluids, seawater, and other challenging materials. With their long lifespan, resistance to oxidation, and robust structure, Titanium Pipes are a trusted option for situations where performance, safety, and efficiency are paramount.
Constructed from commercially pure titanium or titanium alloys, these pipes often get a boost from elements like aluminum and vanadium to enhance their strength, hardness, and corrosion resistance. On a mechanical level, they showcase impressive tensile and yield strength, outstanding fatigue resistance, and good ductility. Their unique metallurgical structure ensures stable performance even at high temperatures and provides resistance to stress corrosion cracking. Plus, being lightweight and non-magnetic, titanium pipes excel in resisting pitting and crevice corrosion, ensuring they remain durable and reliable in demanding industrial and marine settings.
| Titanium Pipe International Specification | ASTM B337 ASME SB337 / ASTM B861 ASME SB861 NACE MRO 175-94, VdTÜV 230/2 |
| Dimensional tolerances | DIN 17861 D3/T3 or closer |
| Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Titanium Seamless Pipe Size |
|
| Grade 2 Titanium Welded Pipe Size |
|
| Titanium Grade 5 EFW Pipe Size |
|
| Titanium Grade 2 Pipe WT | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Grade 5 Titanium Pipe manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
| Origin of ASTM B861 Titanium Alloy pipe material | Indian, European, Korean, Japanese |
| Titanium Metal Gr 5 Pipe End Types |
|
| Form | Round, Square, Rectangular |
| Ti Metal Gr 2 Pipe Length | Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded |
| Titanium Cp Grade 5 Pipe Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
| Ti-6AL-4V ELI Titanium Pipe Packing |
|
| CP Titanium Pipe Value Added Services | Cut to size, thread, and groove |
| Port | Mumbai, India |
| Stocking distributor of leading Titanium Pipe manufacturers |
|
| CP Titanium Pipe Dimensional Specification | ANSI/ ASME B36.10, B36.19, B2.1 |
| Marking on Ti-6al-4v Titanium Pipe |
|
| Titanium Gr 2 | C | Ti | N | Fe | H | O | V | Al |
| 0.1 max | 99.2 min | 0.03 max | 0.3 max | 0.015 max | 0.25 max | – | – |
| Titanium Gr 5 | C | Ti | N | Fe | H | O | V | Al |
| 0.10 max | 90 min | 0.05 max | 0.40 max | 0.015 max | 0.20 max | 3.5-4.5 | 5.5-6.75 max |
| Titanium Alloy | UNS | Proof strength Rp0.2 MPa min | Tensile Stress Rm MPa min | Elongation A % min |
|---|---|---|---|---|
| Cp Ti Grade 1 | R50250 | 138-310 | 240 | 24 |
| Cp Ti Grade 2 | R50400 | 275-450 | 345 | 20 |
| Cp Ti Grade 3 | R50550 | 380-550 | 450 | 18 |
| Ti Grade 7 | R52400 | 275-450 | 345 | 20 |
| Ti Grade 9 | R56320 | 483 | 620 | 15 |
| Ti Grade 11 | R52250 | 138-310 | 240 | 24 |
| Ti Grade 12 | R53400 | 345 | 483 | 18 |
| Ti Grade 16 | R52402 | 275-450 | 345 | 20 |
| Ti Grade 17 | R52252 | 138-310 | 240 | 24 |
| Ti Grade 26 | R52404 | 275-450 | 345 | 20 |
| Ti Grade 28 | R52254 | 483 | 620 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Titanium Pipes from Laila Pipes and Tubes ensures exceptional quality, durability, and performance for demanding industrial applications. Our alloy steel pipes are manufactured using high-grade materials that offer superior resistance to corrosion, high pressure, and extreme temperatures. We adhere to stringent quality control standards to guarantee reliable performance in critical sectors such as oil and gas, power generation, and construction. With a commitment to customer satisfaction, Laila Pipes and Tubes provides tailored solutions, timely delivery, and expert support, making us a trusted partner for all your alloy steel pipe needs.
Laila Pipes and Tubes, one of the largest suppliers of Titanium Pipes in Muscat, OMAN, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Titanium Pipes to meet your specific requirements. Our team at Laila Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lailapipes.com.

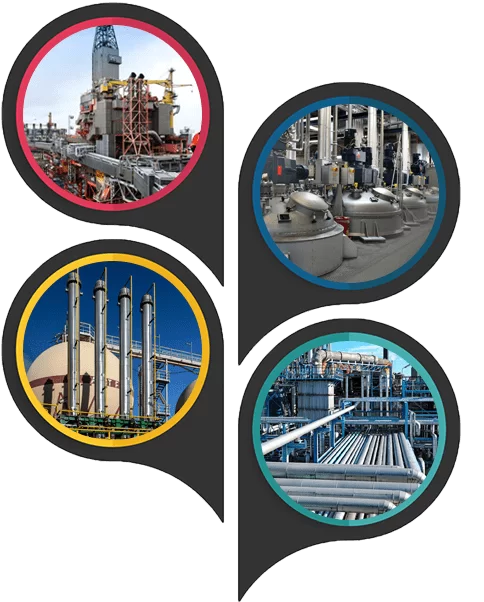

Titanium Pipes find extensive use across various industries that need corrosion-resistant, high-strength piping solutions. In chemical and petrochemical plants, they serve in process lines, heat exchangers, and for transporting corrosive fluids. The marine and offshore sectors utilize titanium pipes in seawater systems, desalination plants, and submerged piping applications. In aerospace and aviation, they’re employed in hydraulic systems and fuel lines, while power generation facilities rely on them for high-performance piping in boilers and heat exchangers. Their blend of strength, corrosion resistance, and longevity makes Titanium Pipes the preferred choice for critical and demanding applications.
