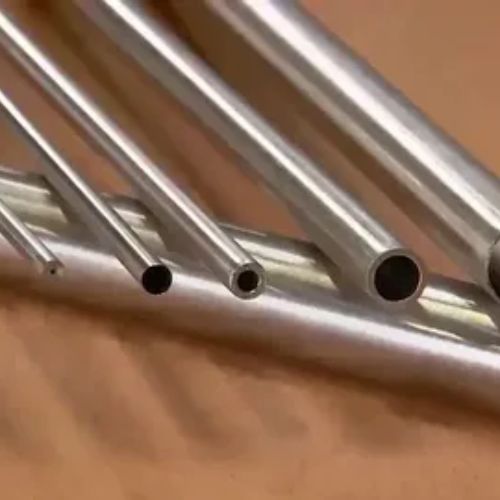

Laila Pipes and Tubes, located in Muscat, Oman, stands out as a top manufacturer and supplier of high-quality Titanium Grade 5 Tubing. Renowned for its precision engineering and rigorous quality control, the company delivers tubing that boasts remarkable strength, resistance to corrosion, and lightweight characteristics. Often referred to as Ti-6Al-4V, Titanium Grade 5 Tubing is celebrated for its versatility and durability, making it a go-to choice for demanding sectors like industrial, medical, and aerospace applications. Laila Pipes and Tubes is committed to providing reliable, high-performance solutions tailored to the unique needs of its clients, solidifying its reputation as a trusted partner in Oman and the Gulf region.
Titanium Gr 5 Tubing, often referred to as Ti-6Al-4V, consists of 90% titanium, 6% aluminum, and 4% vanadium. This alloy strikes a perfect balance of high strength, low weight, and excellent corrosion resistance, making it one of the most sought-after titanium grades. Mechanically, it boasts impressive tensile strength, fatigue resistance, and the ability to endure high temperatures without compromising performance. Plus, it offers good toughness, weldability, and biocompatibility, making it suitable for both engineering and biomedical applications where reliability and durability are essential.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
This tubing is made from a titanium alloy that includes 6% aluminum and 4% vanadium, which gives it superior mechanical properties compared to commercially pure titanium. It showcases high tensile strength, excellent fatigue resistance, and impressive toughness, even when exposed to elevated temperatures. Lightweight yet incredibly durable, it also offers exceptional resistance to corrosion from seawater, chemicals, and harsh environments. The blend of strength, flexibility, and biocompatibility makes Titanium Grade 5 Tubing perfect for aerospace, medical, chemical, and industrial uses, ensuring long-lasting performance even in tough conditions.
Laila Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Muscat, OMAN, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
Titanium Grade 5 Tubing is widely used across various industries that demand high strength-to-weight ratios and outstanding durability. In aerospace, it finds applications in airframes, hydraulic systems, and engine components. The medical field depends on it for surgical instruments, implants, and prosthetics due to its biocompatibility. It’s also an excellent choice for chemical processing equipment, marine environments, and desalination plants where corrosion resistance is essential. Additionally, it plays a vital role in the automotive, oil and gas, and power generation sectors. Its remarkable mechanical properties and corrosion resistance make it a reliable option for a range of demanding applications.
You’ll find Titanium Gr 5 Tubing widely used in industries that demand lightweight strength and corrosion resistance. In aerospace, it’s utilized for engine components, airframes, and hydraulic systems, thanks to its high strength-to-weight ratio. The marine industry relies on it for offshore structures, ship components, and seawater cooling systems due to its resistance to saltwater corrosion. In the medical field, it’s used in implants, prosthetics, and surgical devices because of its excellent biocompatibility. Additionally, sectors like chemical processing, power generation, and automotive depend on it for heat exchangers, reactors, and high-performance systems that operate under extreme conditions.
