Home > Duplex Steel > Duplex Steel EFW Pipes

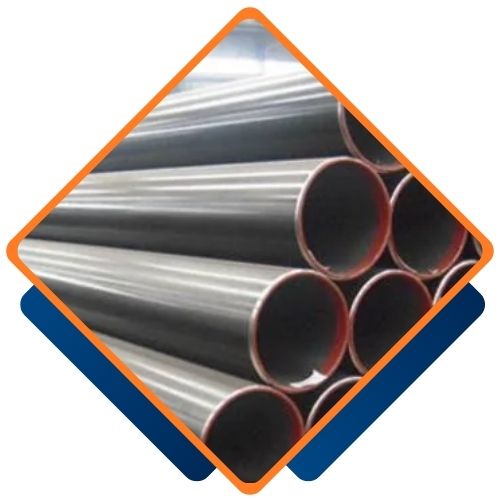

Strategically located in the industrial heart of Muscat, Laila Pipes and Tubes has built a robust reputation as a trusted manufacturer and supplier of high-performance piping solutions. Our focus is on delivering uncompromising quality, and our Duplex Steel EFW Pipe is a prime example of this commitment. Crafted to endure the most demanding environments, this pipe offers an exceptional balance of strength and corrosion resistance, providing long-term reliability and value for critical projects across Oman and beyond.
The strength of our Duplex Steel EFW Pipe comes from its unique composition, primarily a balanced mix of chromium, nickel, molybdenum, and nitrogen. This blend gives it outstanding mechanical properties, including very high tensile and yield strength—often double that of standard stainless steels. It also possesses excellent toughness and fatigue resistance, making it remarkably durable against physical stresses and pressure fluctuations in challenging operational conditions.
| ASTM Specification | ASTM A790 ASME SA790 |
|---|---|
| Applicable Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Welded Pipe Size | 5.0 – 1219.2 mm |
| EFW Pipe size | 5.0 – 1219.2 mm |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random, Standard & Cut length Pipe |

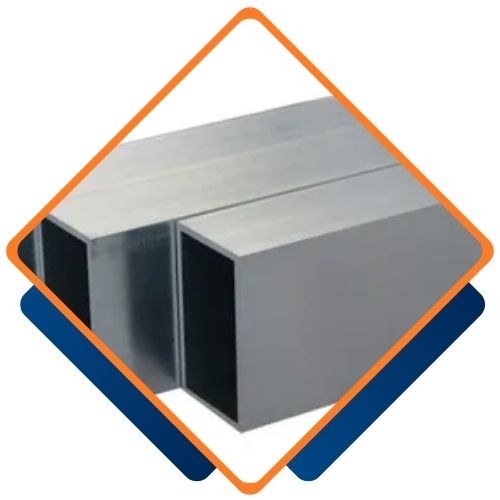

| Form | Duplex 2205 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Duplex 2205 Pipe |
| Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Application | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Duplex Steel | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Duplex Steel | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Choosing Duplex Steel EFW Pipes from Laila Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Laila Pipes and Tubes, one of the largest suppliers of Duplex Steel EFW Pipes in Muscat, OMAN, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel EFW Pipes to meet your specific requirements. Our team at Laila Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lailapipes.com.
Duplex Steel EFW Pipes find extensive use in industries that require high corrosion resistance and mechanical strength. They’re commonly used in chemical and petrochemical plants for the safe transport of acids, alkalis, and other aggressive chemicals. In the oil and gas industry, these pipes are essential for pipelines, heat exchangers, and process equipment that come into contact with seawater and corrosive substances. Power generation facilities utilize them in boilers, condensers, and high-temperature systems, while marine industries depend on them for offshore structures and seawater handling applications. Their versatility and reliability make them a go-to choice for various demanding applications.
